Knowing how to install a ceiling fan can save you a few hundred dollars in labor costs, and it’s one of those home projects that feels genuinely rewarding once you flip the switch. Most handy homeowners in the Phoenix area can handle the job in a couple of hours with basic tools and the right preparation. That said, ceiling fan installation does involve electrical wiring, so understanding safety fundamentals isn’t optional.
At AZ DC Electric, we install ceiling fans across the Greater Phoenix Metro Area every week. We know exactly where DIYers run into trouble, undersized junction boxes, incorrect wiring connections, and fans mounted to brackets that can’t support the weight. This guide is built from that hands-on experience so you can avoid the most common mistakes before they become expensive problems.
Below, you’ll find a complete walkthrough covering everything from turning off the power and removing your old fixture to wiring, mounting, and balancing your new fan. We’ll also cover when a project crosses the line from DIY-friendly to call-a-licensed-electrician territory, because some situations genuinely require one.
What you need before you start
Gathering everything before you start will save you two trips to the hardware store and a half-assembled fan hanging from your ceiling. Most ceiling fan installations require the same core set of tools, and a quick check of your existing wiring and ceiling structure will tell you whether your job is straightforward or one that needs a few extra parts upfront.
Tools and materials checklist
Before you learn how to install a ceiling fan, make sure you have the right tools on hand. A voltage tester is non-negotiable because it confirms the circuit is dead before you touch any wires. The hardware kit that ships with most fans covers mounting components, but your toolbox still needs to be stocked and ready.
Here’s what to gather before you start:
| Item | Why you need it |
|---|---|
| Non-contact voltage tester | Confirms power is off before you touch any wires |
| Flathead and Phillips screwdrivers | Removes old fixture screws and connects mounting hardware |
| Wire strippers | Prepares bare wire ends for secure connections |
| Needle-nose pliers | Bends wire loops around terminal screws |
| Adjustable wrench or socket set | Tightens mounting bolts |
| Sturdy ladder | Gives you safe, comfortable reach to the ceiling |
| Electrical tape | Insulates wire connections as a backup layer |
| Extra wire nuts | Fan kits sometimes include the minimum; extras prevent stoppages |
| Fan-rated ceiling box | Required if your current box is a standard light-fixture box |
| Downrod (correct length) | Determined by ceiling height, covered in Step 1 |
A voltage tester costs under $20 and eliminates the single biggest safety risk in this project. Buy one before you do anything else.
What to check before you shop
Your ceiling structure tells you more than you might expect. Check whether you already have a fan-rated junction box installed, because a standard light-fixture box cannot handle the dynamic load of a spinning motor and blades. Fan-rated boxes are clearly labeled and must support at least 35 pounds of dynamic load per code requirements.
Measure your ceiling height before you buy any fan. Rooms with 8-foot ceilings need a flush-mount or low-profile kit, while ceilings above 9 feet need a downrod sized to keep blades between 7 and 9 feet from the floor for proper airflow. Getting this measurement wrong means returning the fan or buying additional hardware after the fact.
Check your existing wiring for a separate switch leg for the light kit and the fan motor. If only one switch controls your current fixture, decide upfront whether you want a remote receiver or a smart controller before you purchase your fan.
Step 1. Choose the right fan and mounting method
Getting the wrong size fan or the wrong mount is one of the most common early mistakes in learning how to install a ceiling fan. Fan size and ceiling height work together to determine airflow efficiency, and picking the right combination upfront saves you from returning equipment or dealing with a wobbling, underpowered fan for years.
Pick the right fan size for your room
Blade span is the primary sizing factor, and it maps directly to your room’s square footage. A fan that’s too small moves air ineffectively, while one that’s too large creates unnecessary drag on the motor and looks out of scale in the space.
| Room size (sq ft) | Recommended blade span |
|---|---|
| Up to 75 | 29 to 36 inches |
| 76 to 144 | 36 to 42 inches |
| 145 to 225 | 44 inches |
| 226 to 400 | 50 to 54 inches |
| 400+ | 60 inches or larger |
Measure your room before you walk into a store. Guessing fan size leads to poor airflow and a fan that looks wrong in the space.

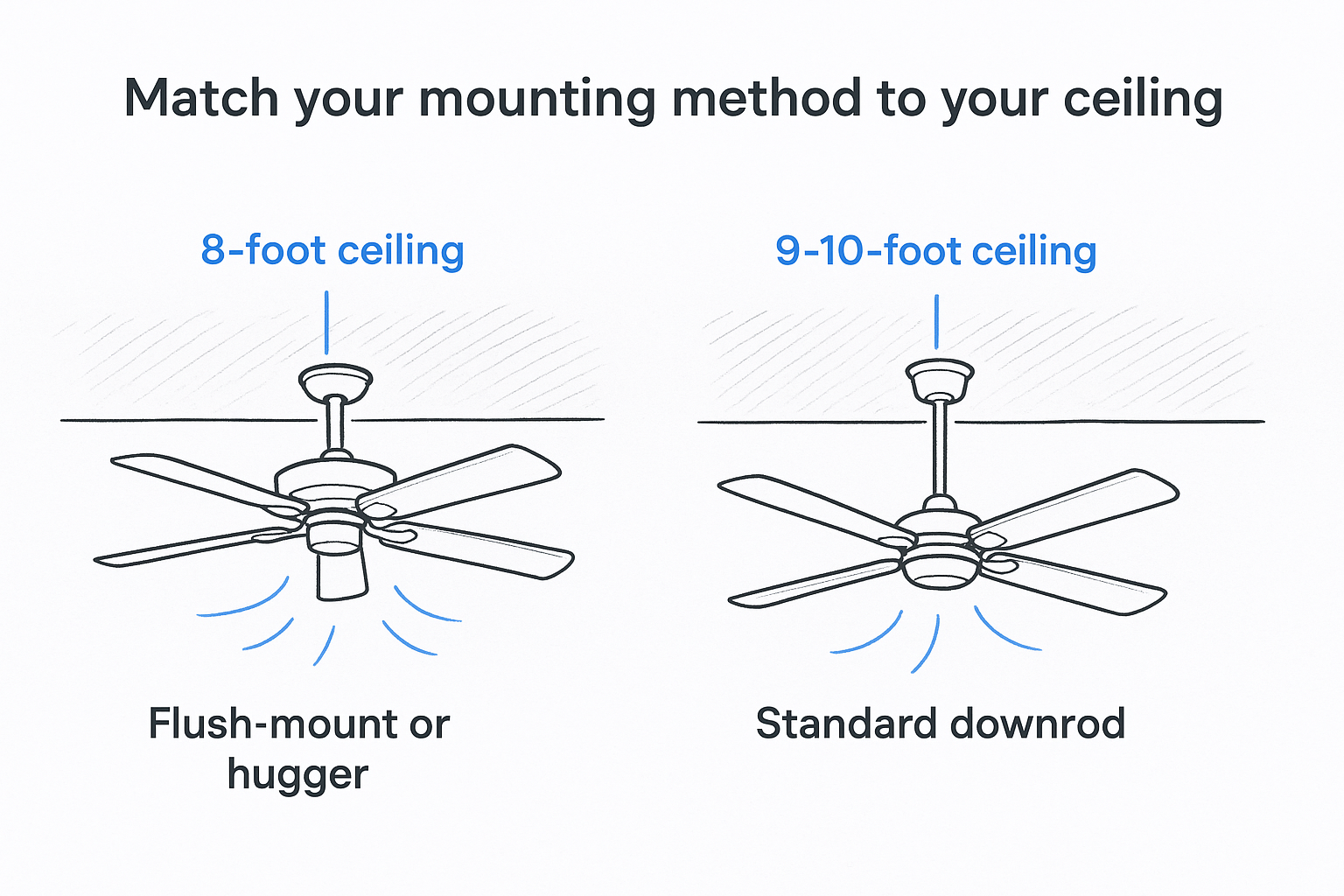

Match your mounting method to your ceiling
Ceiling height controls which mounting type you need. Flush-mount or hugger fans sit directly against the ceiling and work well for 8-foot rooms where downrod clearance is tight. For ceilings between 9 and 10 feet, a standard downrod of 6 to 12 inches keeps blades in the optimal 7-to-9-foot zone for proper airflow.
Sloped or vaulted ceilings require an angled mounting bracket or a ball-and-socket canopy rated for pitch. Most manufacturers specify the maximum slope the mount supports, typically up to 45 degrees, so check that specification before you purchase if your ceiling has any incline.
Step 2. Shut off power and remove the old fixture
This step is where safety and precision matter most. Skipping or rushing the power shutoff is the leading cause of electrical injury during ceiling fan projects, and it takes less than two minutes to do it correctly. Before you touch a single wire, get this step right.
Cut the power at the breaker panel
Go to your main electrical panel and locate the breaker that controls the room where you’re working. Flip it to the off position, then return to the room and flip the wall switch on. If the existing fixture doesn’t respond, the right breaker is off. Take your non-contact voltage tester and hold it near the fixture wires before you remove anything. The tester should give no reading. If it beeps or lights up, go back to the panel and find the correct breaker.
Never rely on the wall switch alone to confirm power is off. A faulty switch or a miswired circuit can leave live voltage at the fixture even when the switch reads "off."
Remove the old fixture safely
Once your voltage tester confirms the circuit is dead, unscrew the canopy cover from the ceiling to expose the junction box and wiring. Most canopies are held by two to four screws. Support the fixture with one hand or hang it temporarily from the mounting bracket while you work, because dropping a glass fixture onto a hard floor mid-job is a common and avoidable frustration.
Disconnect the wire nuts connecting the black, white, and bare copper ground wires from the house supply wires. Keep track of which wires connected to which, and note whether your ceiling has a separate blue wire, which indicates a switched light circuit. This wiring configuration will directly affect how you connect your new fan in Step 4.
Step 3. Install a fan-rated box and mounting bracket
If your inspection from the previous step revealed a standard light-fixture box, replacing it is not optional. A non-rated box can pull free from the ceiling under the dynamic load of a spinning motor and blades, and that failure happens suddenly and without warning. This is one of the most critical steps in learning how to install a ceiling fan safely, so take your time and confirm every fastener before you move forward.

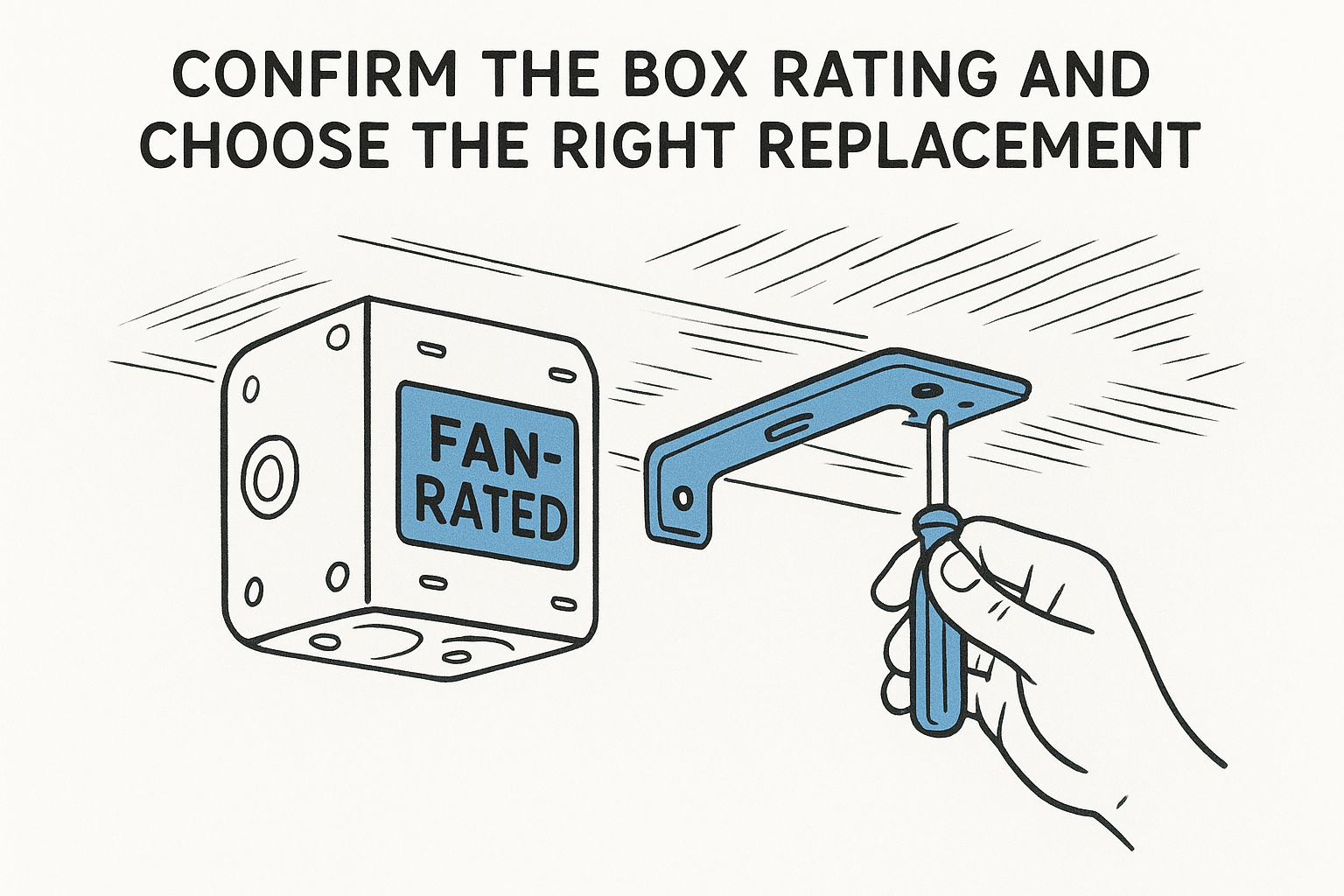

Confirm the box rating and choose the right replacement
Your new junction box must carry a fan-rated label and support at least 35 pounds of dynamic load. Two common replacement options exist: a brace-mounted box, which installs through the existing ceiling hole without attic access, and a box that attaches directly to a ceiling joist. If a joist runs within a few inches of your hole, screw a joist-mounted box directly into the framing for the strongest possible result.
A brace-mounted fan box uses an expandable metal bar that locks between two joists from below, so you can install it without cutting drywall or entering the attic.
Secure the mounting bracket to the box
Once your fan-rated box is locked firmly in place, thread the mounting bracket onto it according to the fan manufacturer’s instructions. Most brackets drop over a center stud or bolt to the box face with two included screws. Hand-tighten first, then use your wrench to snug each fastener without overtightening, which can strip threads or crack the box housing.
Pull down on the bracket firmly after you tighten it. If it shifts or wobbles at all, re-examine the box installation before you hang anything from it. A bracket that moves under hand pressure will only get worse once the fan weight and rotation are added.
Step 4. Assemble, hang, wire, and attach blades
This is the most involved step in learning how to install a ceiling fan, but breaking it into a logical sequence keeps it manageable. Assemble the motor housing and canopy on the ground first, following the manufacturer’s instructions, so you’re not fumbling with loose screws while balancing on a ladder.
Hang the motor and connect the wiring
Hook the ball mount or downrod bracket onto the mounting bracket and let the motor hang freely. Most fan designs include a hanger ball or a hook that holds the motor in place while you wire it, giving you two free hands for the connections.
Match the wires by color: black to black, white to white, and bare copper to bare copper. If your fan has a separate blue wire for the light kit, connect it to the black supply wire along with the fan’s black wire using a single wire nut. Tug each wire nut after you tighten it to confirm the connection is secure, then fold the wires neatly into the canopy before you secure the canopy screws.
Wrap each wire nut connection with electrical tape as a backup, especially in warm climates like Phoenix where heat can loosen connections over time.
Attach the blades and check for wobble
Screw each blade bracket onto its blade first, then attach each assembled blade arm to the motor using the included hardware. Snug each screw firmly but stop before you strip the threads, since plastic blade brackets crack easily under excessive torque.
Restore power at the breaker and run the fan on low speed for 30 seconds. Watch the blade tips for visible wobble. If wobble appears, use the balancing clip that most manufacturers include, sliding it along different blades until the rotation smooths out.
Final safety check
Once you complete how to install a ceiling fan, run through a quick final check before you call the job done. Restore power at the breaker and test both the fan motor and the light kit at each speed setting. Listen for grinding or rattling sounds, which usually point to a loose blade screw or a wire that got pinched inside the canopy.
Check the canopy cover and mounting bracket one more time by hand. If anything shifts or feels loose after the fan has run for a few minutes, shut the power off and re-tighten the hardware before you use the fan again. A properly installed fan runs smoothly at all speeds without wobble or noise.
If your wiring situation is more complex than a standard swap, or your ceiling box replacement felt uncertain, don’t run the fan long-term without a professional confirming the installation is safe. Contact a licensed electrician at AZ DC Electric for a fast, upfront quote with no dispatch fee.
