Every wire behind your walls carries electricity that powers your daily life, and every one of those wires can cause serious harm if it’s installed wrong or misunderstood. Whether you’re planning a renovation, troubleshooting a tripped breaker, or just trying to make sense of what’s going on inside your electrical panel, understanding home electrical wiring basics starts with knowing how your system is built and why each component matters.
You don’t need to become a licensed electrician to benefit from this knowledge. But knowing the difference between a hot wire and a neutral wire, understanding how circuits distribute power through your house, and recognizing when something looks unsafe, that’s practical information that protects your family and helps you communicate clearly with a professional when it’s time to call one.
At AZ DC Electric, we handle residential electrical work across the Greater Phoenix Metro Area every day, from panel upgrades and full rewires to safety inspections and outlet replacements. We’ve seen firsthand how a basic understanding of home wiring helps homeowners ask the right questions and make better decisions about their electrical systems. That experience is exactly what shaped this guide.
Below, we’ll walk through the core components of a residential electrical system, break down wire color coding and what each color means, explain how circuits work, and cover the safety principles every homeowner should know before touching, or hiring someone to touch, anything electrical in their home.
Why home wiring basics matter for safety
Electrical fires and injuries don’t usually happen because someone was careless on purpose. They happen because most homeowners never learn what their wiring is actually doing or what warning signs look like. According to the U.S. Fire Administration, electrical fires cause thousands of injuries and hundreds of deaths in the United States every year, and a large percentage of those incidents trace back to wiring problems that were either overlooked or incorrectly repaired. Understanding home electrical wiring basics isn’t about turning you into an electrician. It’s about giving you enough knowledge to protect your home and recognize when something’s wrong before it becomes dangerous.
The real cost of getting it wrong
Most electrical hazards build slowly. A loose wire connection at an outlet generates heat every time current flows through it. Over months or years, that heat degrades the insulation, increases resistance, and eventually creates the conditions for an arc fault or fire. By the time you see symptoms like a warm outlet cover, a burning smell, or flickering lights, the damage behind the wall can already be significant. You don’t need to open the wall to understand this risk. You just need to know what those symptoms mean and take them seriously.
Ignoring small warning signs like flickering lights or warm outlet covers is one of the most common ways electrical damage goes undetected until it becomes a serious hazard.
Why DIY electrical work carries real risk
Many homeowners attempt small electrical jobs without a permit or proper training, and some complete them without immediate incident. But improperly wired connections can pass a visual inspection and still carry hidden risks for years. A wire landed on the wrong terminal, a ground that’s absent or bonded to the wrong point, or a circuit overloaded because someone added too many outlets, each of these mistakes puts long-term stress on your system that may not show up as an obvious problem right away. Most jurisdictions, including Arizona, require permits for electrical work beyond basic fixture swaps for exactly this reason.
Understanding the fundamentals of your home’s wiring helps you make a clearer judgment about what’s safe to handle yourself and what genuinely requires a licensed professional. That boundary matters more than most people realize before something goes wrong.

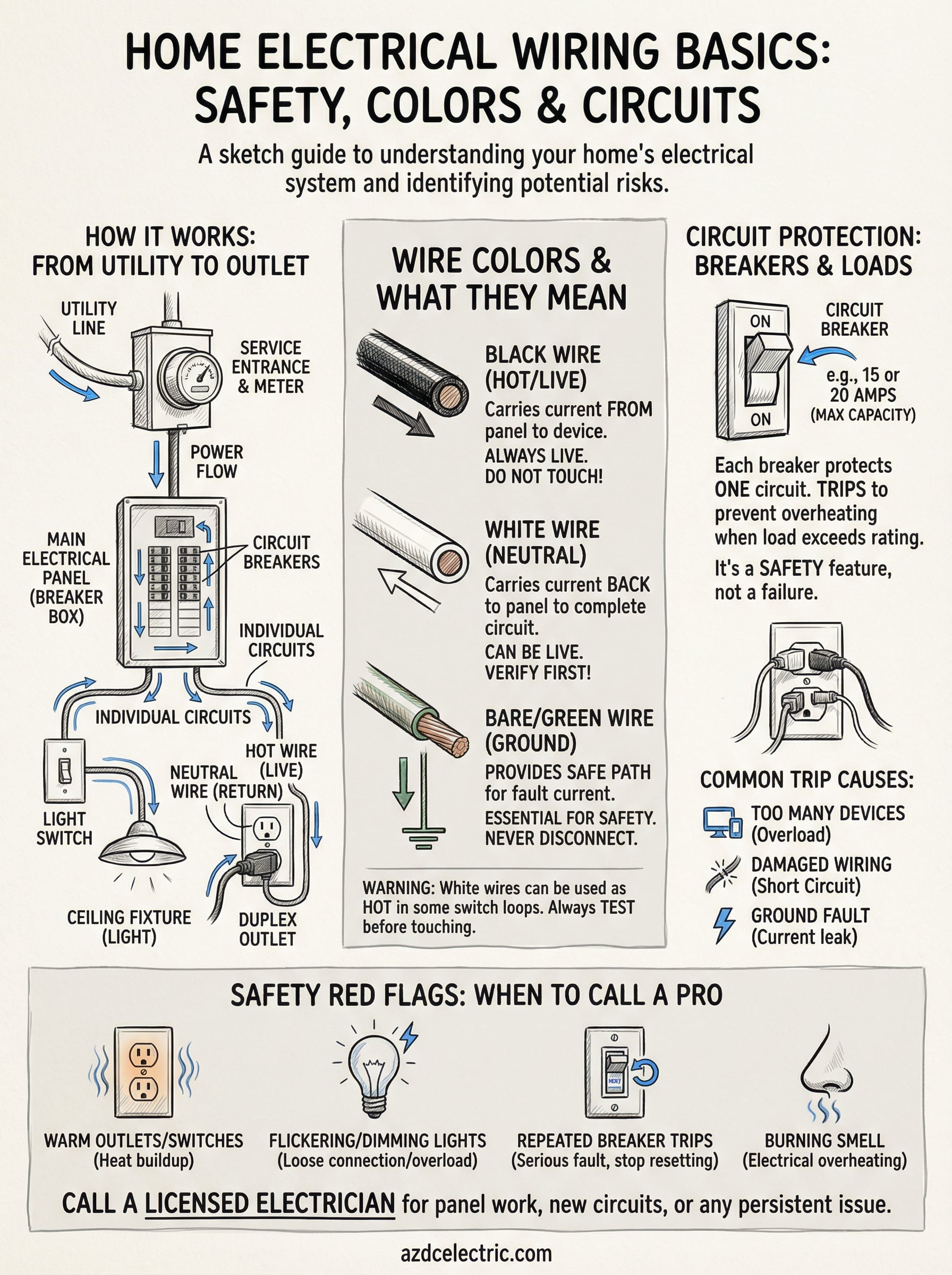

How a typical home electrical system works
Your home’s electrical system follows a straightforward path from the utility line to the devices you plug in every day. Power enters through the service entrance, typically at an exterior wall, where it connects to your electrical meter. From there, electricity flows into your main electrical panel, which distributes it through individual circuits to every room. Understanding this path is one of the most useful parts of learning home electrical wiring basics.

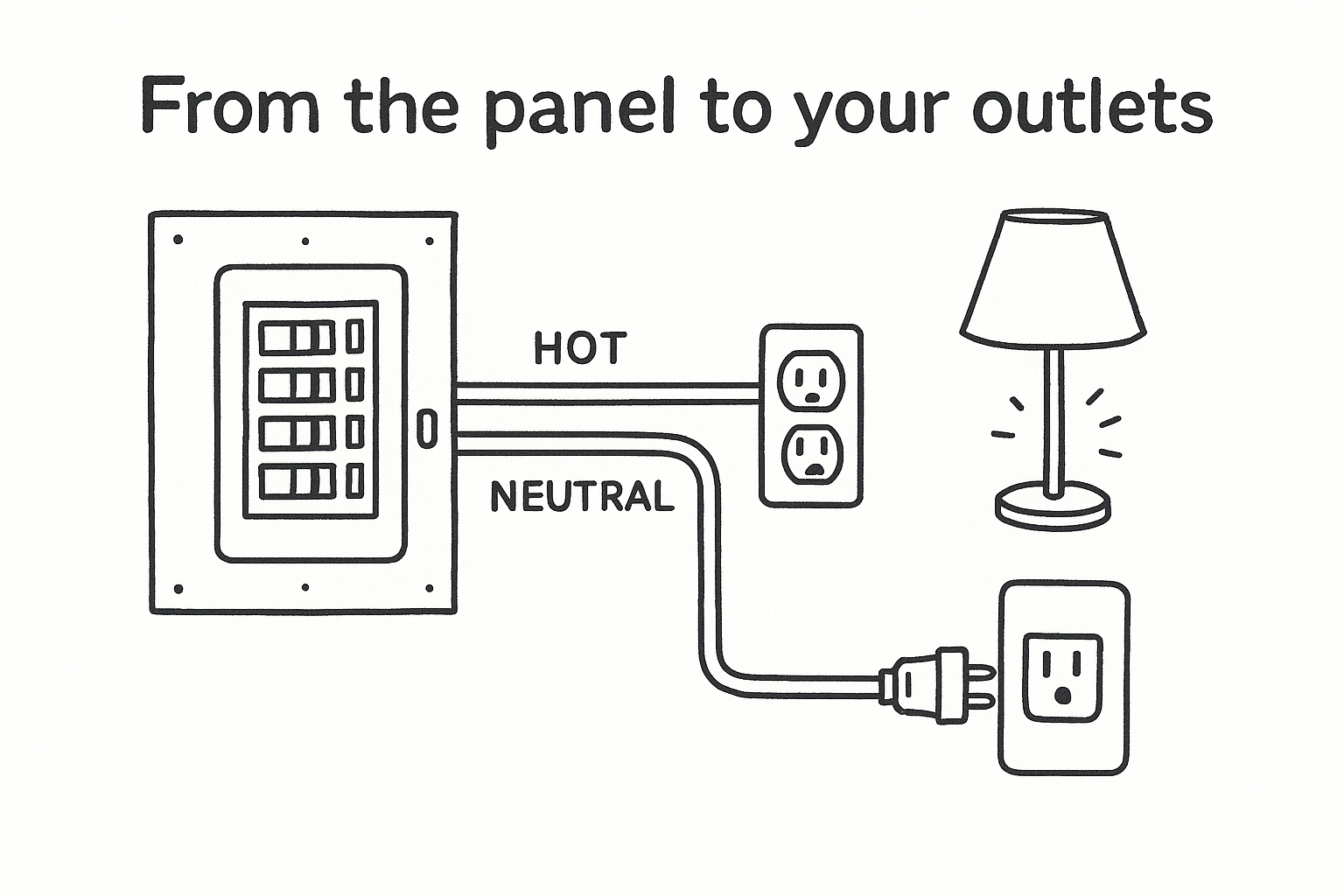

From the panel to your outlets
The circuit breakers inside your panel each protect a specific circuit. When you flip a light switch or plug in an appliance, electricity travels from the panel through the hot wire, powers the device, and returns through the neutral wire to complete the circuit. Every circuit is sized for a specific load, which is why a kitchen circuit is rated for more current than a bedroom circuit.
Standard branch circuits in most homes run to outlets, switches, and light fixtures throughout each room. Larger appliances like electric dryers or HVAC systems require their own dedicated circuits with higher amperage breakers. Sharing those loads on a standard circuit is a common wiring mistake that causes repeated breaker trips.
The panel is the control center of your entire electrical system, and every circuit in your home traces back to it.
How load and capacity work together
Each circuit breaker is rated for a maximum amperage, typically 15 or 20 amps for standard household circuits. When the total load exceeds that rating, the breaker trips to prevent overheating. This is a protective function, not a malfunction.
Frequent tripping usually means the circuit is undersized for the demand you’re placing on it. Knowing your circuit’s rating helps you avoid that problem when you add new outlets or appliances to a room.
Wire colors, cable types, and what they mean
The wires inside your walls aren’t colored randomly. Each color in a residential electrical system carries a specific meaning, and confusing them is one of the fastest ways to create a dangerous wiring condition. If you’re serious about understanding home electrical wiring basics, knowing what each wire does is non-negotiable before you open any junction box or outlet.

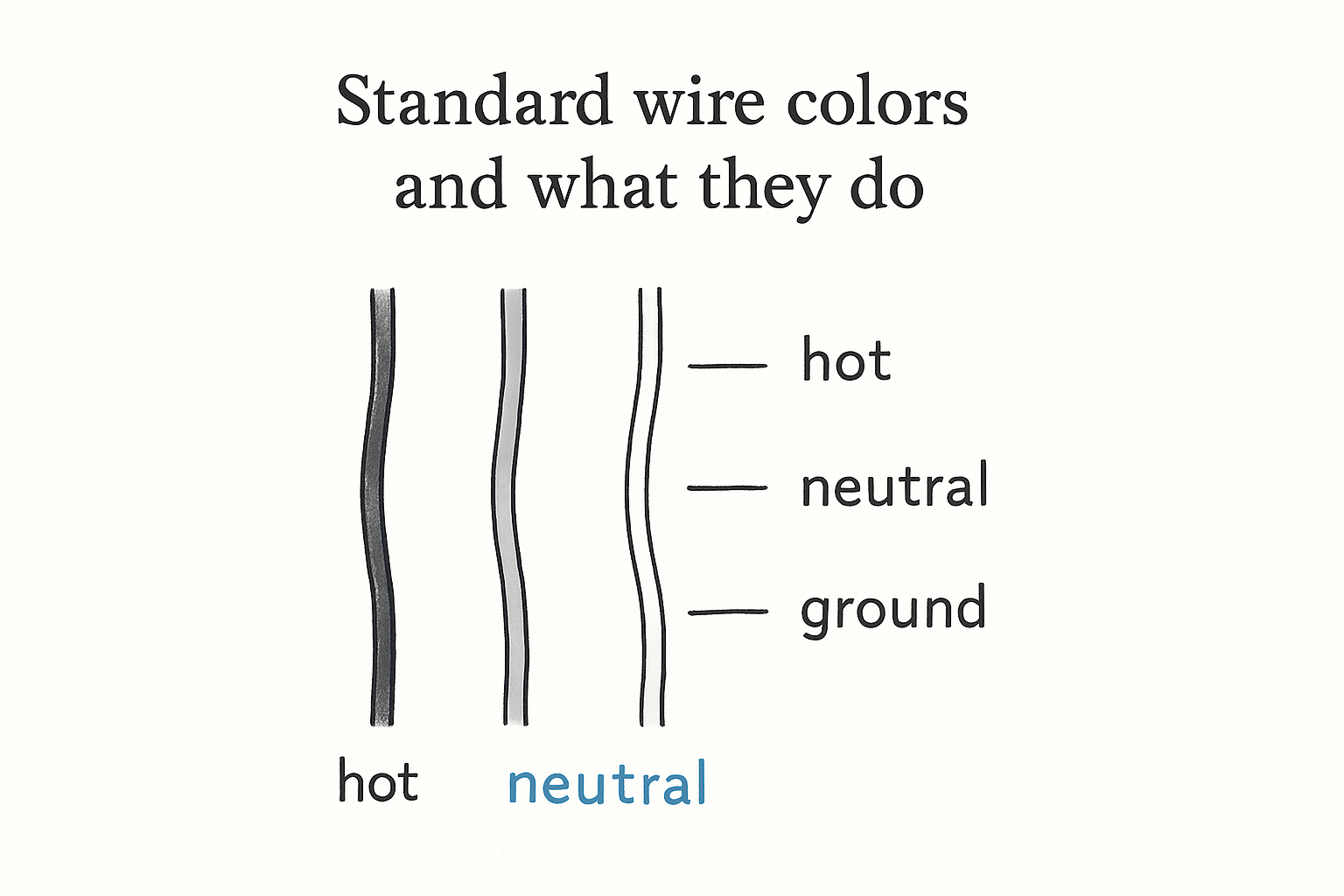

Standard wire colors and what they do
In US residential wiring, black wires are hot, meaning they carry live current from the panel to the device. White wires are neutral and carry current back to the panel to complete the circuit. Bare copper or green wires are ground conductors, which provide a safe path for fault current to travel in the event of a short. Some situations use red as a second hot wire, typically in 240-volt circuits or three-way switch setups.
Treating a white wire as always neutral is a mistake. In switch loops, white wires can be re-marked and used as hot conductors, so always verify with a non-contact voltage tester before touching anything.
Common cable types in residential construction
The cable type determines where and how wiring can be installed, not just what’s inside it. NM cable, often called by the brand name Romex, is the most common type in residential interiors and bundles the hot, neutral, and ground conductors inside a plastic sheath. UF cable looks similar but is rated for direct burial and outdoor use. Individual THHN conductors run through conduit in locations that require physical protection, such as garage walls or exposed basement runs. Knowing which cable type your home uses helps you understand what’s appropriate when repairs or additions are needed.
Circuits, breakers, and panel basics
Your electrical panel is the central hub where every circuit in your home originates. Each breaker inside the panel protects one specific circuit by cutting power when the current exceeds a safe level. Understanding how panels and breakers work together is a core part of home electrical wiring basics, and it’s the foundation for diagnosing almost any recurring electrical problem in your home.
How breakers protect your circuits
A breaker trips when the current flowing through a circuit exceeds its rated amperage, which is typically 15 or 20 amps for standard household circuits. This is a built-in safety response, not a sign that the breaker is failing. The most common reasons a breaker trips repeatedly include:
- Too many high-draw devices running on the same circuit simultaneously
- A short circuit caused by damaged or touching conductors inside a device or outlet
- A ground fault where current is leaking to an unintended path
If a breaker trips immediately after you reset it, stop and call a licensed electrician rather than resetting it again, since repeated tripping under no load usually points to a wiring fault.
Reading your electrical panel
Most panels include a directory on the inside of the door that labels which breaker controls which area of your home. If yours is blank or inaccurate, mapping each circuit is a straightforward task that pays off every time you need to work safely on an outlet or fixture. You simply turn off the breaker and confirm power is dead at the device using a non-contact voltage tester before touching any wiring.
Larger appliances like water heaters, air conditioners, and electric dryers use double-pole breakers that occupy two slots and supply 240 volts. Seeing these in your panel is normal, but any breaker that feels warm to the touch, shows visible scorch marks, or won’t hold its position needs prompt professional attention.
Common mistakes, red flags, and when to call
Knowing home electrical wiring basics helps you spot problems before they become emergencies. The most costly electrical issues in residential homes rarely start as big failures. They start as small oversights that compound over time, and recognizing them early is the most practical thing you can do to protect your home and your family.
Mistakes homeowners make most often
The most frequent wiring mistake is overloading a single circuit by daisy-chaining power strips or adding too many outlets to one breaker. A second common error is using the wrong wire gauge for a circuit’s amperage, such as running 14-gauge wire on a 20-amp breaker when 20-amp circuits require 12-gauge wire. Both mistakes generate heat that builds invisibly inside your walls over months or years.
Skipping the ground wire on outlet replacements is another common problem. Ungrounded outlets leave appliances without a fault path, which means a short circuit has nowhere safe to go.
Red flags that need immediate attention
Some warning signs require you to act the same day you notice them. These include:
- Outlets or switch covers that are warm or discolored
- A burning smell with no obvious source in the room
- Breakers that trip repeatedly on the same circuit
- Lights that flicker or dim when large appliances start
Any one of these symptoms points to a condition that can escalate to a fire or shock hazard, and none of them resolve on their own.
When to stop and call a licensed electrician
Call a licensed electrician any time a task involves opening your electrical panel, replacing a breaker, or running new circuits. Permit-required work, 240-volt appliance wiring, and repairs that expose conductors behind walls all fall into this category. In Arizona, unpermitted electrical work can complicate home sales and insurance claims, making a licensed professional the right call both physically and legally.
Next steps for a safer home
Working through home electrical wiring basics gives you a clearer picture of what’s happening behind your walls and a sharper instinct for when something isn’t right. Start by mapping your electrical panel if it isn’t already labeled. Know which breaker controls which room, test your GFCI outlets monthly, and replace any three-prong outlets that aren’t properly grounded. These are small tasks that take less than an hour and directly reduce your risk.
Beyond the basics you can handle yourself, a professional safety inspection gives you a complete picture of your system’s condition, including wiring age, panel capacity, and any code issues that aren’t visible at the surface. If your home is older than 25 years or you’ve never had an inspection, it’s worth scheduling one. The team at AZ DC Electric serves the Greater Phoenix Metro Area and can assess your system, handle upgrades, and answer your questions before any work begins.
